Industrial Shredders

Specifications

Excellent durability by adoption of high-rigid, hardened shaft
Top class cutter shaft diameter
Smooth drive by helical gears
Liquid coupling mechanism for shock absorption
Low speed/high torque crushing system assures low maintenance, low consumption power, reduced labor charge and reduction of noise and vibration
Compact drive mechanism allows small floor space, providing convenience and safety.
Hopper and drive are electrically interlocked for safety.
To protect an operator from noise nuisance, the low noise technology is included in the standard specification.

Municipal Waste and Industrial Waste (Plastic, Paper, Tires, Pallets, Metal, etc.)

Model
HP
Crushing chamber Size
RPM
Processing Capacity/Hour
Crusher weight
MD-AR18
15 HP
.450*610 mm
50-25
.200-_400 KGS
1600
MD-AR22
25 HP
.570*610 mm
50-25
.400-_600 KGS
1800
MD-AR27
25 HP
.690*610 mm
50-25
.600-_800 KGS
2000
MD-AR32
30 HP
.810*610 mm
50-25
.800-_900 KGS
2300
MD-AR37
30 HP
.930*610 mm
50-25
.900-1100 KGS
2600
MD-AR42
40 HP
1050*610 mm
50-25
1000-1200 KGS
3000
MD-BR25
30 HP
.638*720 mm
50-25
.500-_700 KGS
2200
MD-BR30
40 HP
.758*720 mm
50-25
.700-_800 KGS
2600
MD-BR35
40 HP
.878*720 mm
50-25
.900-1000 KGS
2800
MD-BR40
50 HP
1000*720 mm
50-25
1000-1200 KGS
3000
MD-BR45
50 HP
1100*720 mm
50-25
1100-1300 KGS
3500
MD-BR50
60 HP
1240*720 mm
50-25
1200-1500 KGS
3800


Depending on waste type, we will offer other models. Please consult.

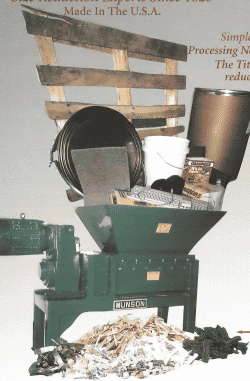

The Munson Titan-2000 Shredder
The Munson Titan-2000 Shredder

The Munson Titan-2000 Shredder

The Munson Titan-2000 Shredder
