We offer various waste recycling machines and system. We will also design special machines and system to meet your requirement.

Top Page

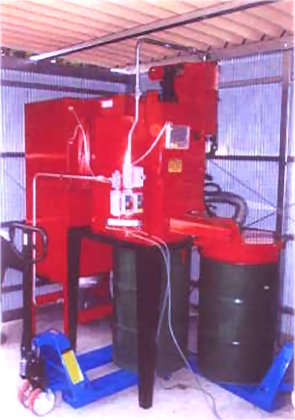

Compression power 5.5t
Capacity(Hour) 450(can) / 1hour
Size of the can which can be processed
Path 22mm-76mm  Length 100mm-300mm
Required power supply 200V
The source of required air 6kg / cm3
(A compressor is customer-paid.)
Specification which prevents explosion  Motor,Electric circuit
Option  Gas auxiliary combustion equipment

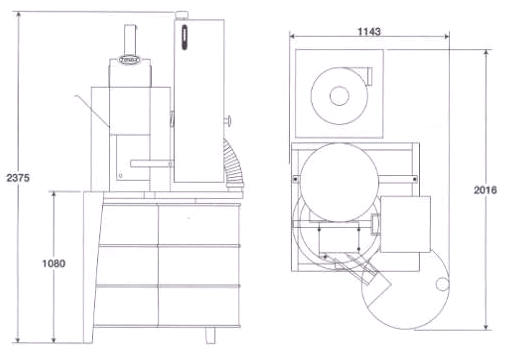

L*W*H(mm)(Standard specification)
2.016m*1.143m*2.375m

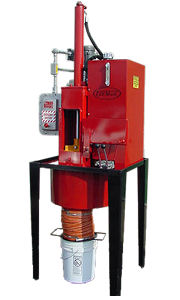

Crushing Force:up to 12,000 lbs.
Cycle Time:9 seconds
Crushing Dimensions:5 1/2 x 7 x12 3/4 inches

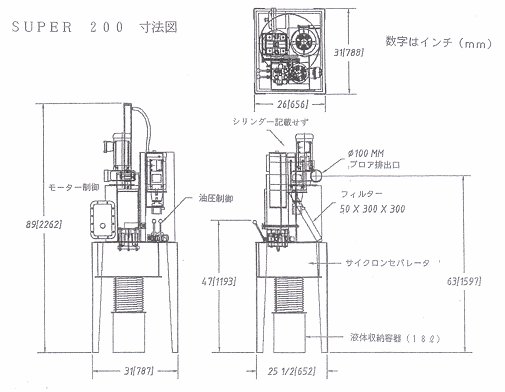

Dimensions:31" wide x 26" deep x 90" tall
Shipping Weight:850 pounds
Crate size:48" x 48" x 53" tall
Crusher:3/4 hp, 115/230 volt, 11/6 amp, single-phase
Blower:1/2 hp, 115/230 volt, 7/4 amp, single-phase
Runs on a single 20 amp, 115 volt circuit.
Liquid is collected in a 5-gallon pail (not provided).
Optional Carbon Filtration is available.
