Crushing Object:
Various shells, sea shells and waste plastic
Input size of the material shall be limited to the size of crushing chamber
Metal, large wood or large wood, large tiles and stones cannot be input.
Motor: 30Hp
Chamber Size: 300mm(L)*510mm(W)
Crushed Size: Min 2-3mm (with screen)
Processing Capacity: 150 to 200kg (depending on object)
Numbers of Cutters: four stationary cutters and six rotary cutters
Drive: Electric motor
Control Unit: On-machine Built-in type
Hopper
Stand,

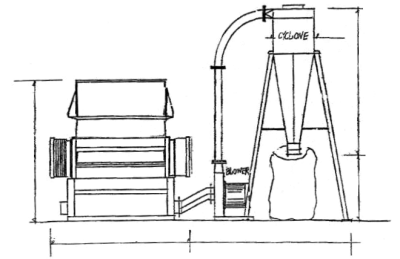

Cyclone (blower) Type #See the sketch below.
Option:
1) Input conveyer
2) Exhaust Conveyer
3) Spare Pars (cutters, etc.)
